Modular Battery Management Platform for Diverse Voltage Architectures

Eberspaecher Vecture has expanded its product portfolio with the GuardIon-IQ platform, a modular battery management system engineered to oversee and protect rechargeable energy storage units. The technological solution operates across a broad electrical spectrum spanning from 12 to 1,500 volts, accommodating both integrated and distributed topologies. Target deployment areas encompass e-mobility, uncrewed systems, off-highway equipment, industrial power applications, data centers, and grid-scale energy storage systems.

System Variants and Functional Scalability
The platform is structured into six distinct variants tailored to specific battery topologies and load requirements. For small-to-medium integrated configurations, the IQ Prime variant integrates onboard MOSFET switching. Medium-to-large packs utilize the IQ Pro variant through external contactor control. High-current applications are addressed by IQ Power, which incorporates advanced diagnostics alongside protection and sensing modules available in 100-ampere, 200-ampere, and 300-ampere iterations.

For high-voltage distributed setups, the system employs the IQ Command central controller to manage series strings, while IQ Sentinel handles cell-level measurement, balancing, and safety protection. The architecture is capped by IQ Apex, which monitors up to three high-voltage nodes reaching 1,500 volts, including built-in ground-fault detection capabilities.

Mechanical Integration and Operational Parameters

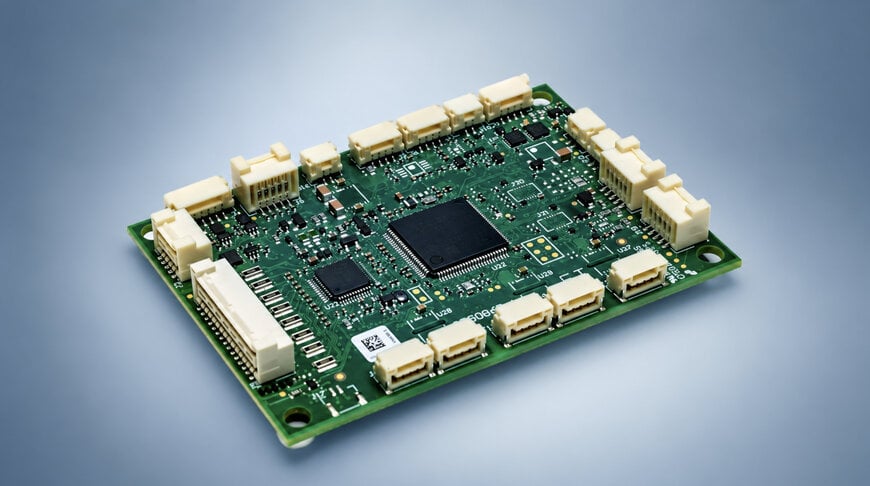

A primary engineering focus centered on minimizing physical footprint and mass. The core electronics are built into an 80 mm by 55 mm by 12 mm form factor, reducing space constraints in dense integration environments. The platform incorporates redundant safety circuits, MOSFET and contactor actuation logic, real-time current sensing, state-of-charge and state-of-health algorithms, alongside CAN bus and Wi-Fi communication interfaces. Manufacturing and validation processes adhere to regulatory frameworks including ISO 9001, ISO 13485, USMCA, ITAR, and CGP, supported by automated functional test verification across production lines.

Additional Context:
This section details technical specifications and competitive benchmarking not included in the original product announcement

Modern high-voltage and utility-scale battery management platforms require strict compliance with functional safety standards such as UL 1973 and IEC 62619, alongside distributed telemetry to prevent single-point failures in multi-megawatt environments. Comparable modular architectures such as high-voltage BMS solutions offered by market peers like Nuvation Energy (G5 platform) and specialized reference designs utilizing stacked analog front-ends—similarly target the 1,500-volt threshold with distributed cell interface modules and continuous balancing topologies.

Compared to rigid monolithic topologies, platforms utilizing scalable master-slave or distributed communication buses (such as isoSPI or redundant CAN) demonstrate superior voltage scaling and reduced wiring harness complexity. The GuardIon-IQ platform differentiates itself through a unified hardware ecosystem spanning low-voltage mobile units up to 1,500-volt industrial and stationary nodes, combining compact physical dimensions with integrated multi-protocol connectivity.

Edited by Sucithra Mani, Induportals editor – adapted by AI.
