Long Live The Battery

Freudenberg Sealing Technologies produces one million foldable gaskets in Langres, France.

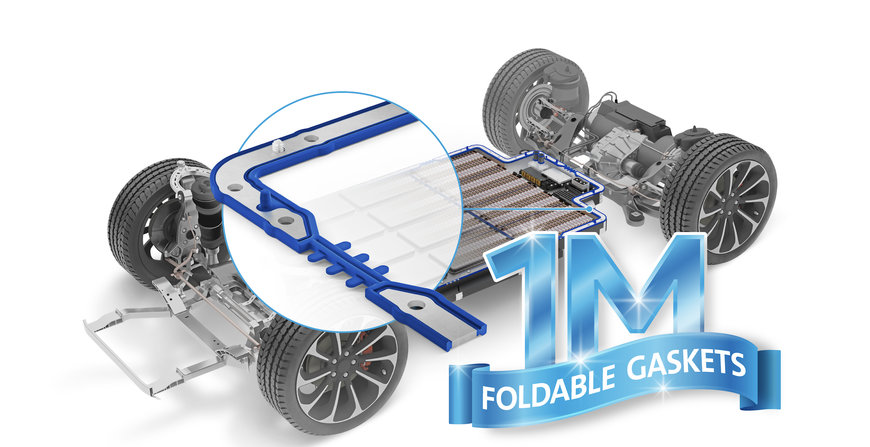

FST_1M-Foldable-Gaskets

Freudenberg Sealing Technologies is offering a new type of foldable gasket for battery electric vehicles – and now the number of these units produced in Langres, France, has reached one million. With this gasket design, Freudenberg significantly contributes to the reliability and longevity of battery systems – while also promoting the sustainable mobility of tomorrow. Automobile manufacturers worldwide rely on the innovative solutions from Freudenberg.

The number of electric cars on the roads is growing constantly – by 2030, more than 100 million electrically powered vehicles are expected to be running worldwide. To make sure that the drivers can enjoy their electric vehicles for as long as possible requires a well-protected battery system. In normal operation, for example, splash water must be prevented from entering through the gap between the battery cover and housing. This task is handled by the battery housing gasket that can be up to eight meters long, depending on the size of the enclosure. But the seal must do far more than just protect against contamination. If there is a thermal event in the battery, it should help contain the flames too.

Freudenberg Sealing Technologies has developed various sealing solutions for battery systems. In Langres, France, the number of innovative foldable gaskets produced has just passed the one million mark. Gaskets from this plant are installed by e-vehicle manufacturers throughout Europe.

The pilot line has been partially subsidized by the Public Interest Group (GIP) Haute Marne, the European Regional Development Fund (FEDER), and the Grand Est Region.

Foldable gasket meets highest criteria
By developing the foldable gasket, Freudenberg Sealing Technologies has found a solution that meets customer requirements to the highest degree. A segmented aluminum carrier with multiple sealing profiles on the outer edge provides strength while also integrating plastic retention fixtures. These are used to attach the gasket quickly and efficiently to the battery housing cover. The carrier segments are interconnected with a continuous sealing profile that is highly flexible. This way it can compensate for small manufacturing tolerances in the housing.

As a result, the foldable gasket helps make the battery system more reliable and durable. Its simple disassembly also makes it easy to service and repair the battery. This benefits both the vehicle owners and the environment: Instead of having to replace the battery, it can be reused.

The foldable gasket is delivered as a single complete unit that doesn’t first have to be assembled from individual elements, which greatly increases the reliability of the installation. Furthermore, battery manufacturers can use fully automated, robotic gasket installation on site. Another significant advantage of this solution is that the metallic inserts ensure high electrical conductivity between the battery housing and cover. This is important for efficient shielding of the electromagnetic fields generated by the current flow in the battery. Otherwise, these fields could interfere with other electronic components in the car.

Materials meet the highest requirements
Despite its large dimensions when installed, the gasket is produced on a small press in Langres. This keeps the amount of energy required for its production relatively low. Additionally, this foldable version facilitates the use of standard-sized packaging solutions, resulting in space savings and, consequently, a reduction in energy consumption during transportation.

Worldwide production close to customers
The foldable gaskets made by Freudenberg Sealing Technologies use standard elastomers such as silicones and EPDM that meet safety-related flame resistance standards. Combined with an innovative design, these gaskets meet the strictest sealing requirements according to IPX-9K, IPX-7X standards, as well as other global specifications. Moreover, these foldable versions are suitable for all combinations of materials used for the battery cover and housings, such as aluminum, steel and composite materials.

Automobile manufacturers worldwide rely on the innovative solutions from Freudenberg. The foldable gaskets are produced not only at the plant in Langres, France, but also in manufacturing facilities in the USA and Asia for their local markets. After all, Freudenberg Sealing Technologies’ philosophy is to keep delivery routes short and favoring manufacturing where the customer is located. This approach helps limit CO2 emissions generated by transportation.

www.fst.com
