High-Speed Coaxial Connectors for Advanced Vehicle Architecture

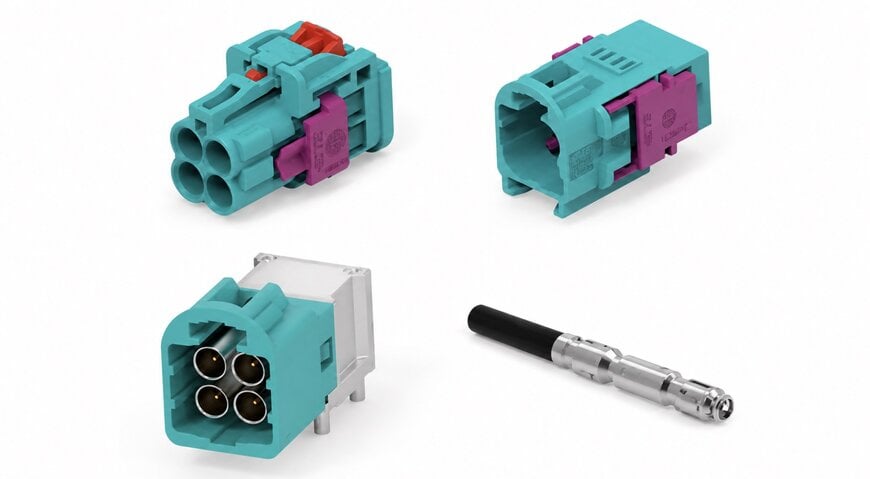

TE Connectivity is releasing the TE MINI FAKRA connector system, a high-performance connectivity solution engineered for connected, automated, and software-defined vehicles. This system enables the high-speed data transmission essential for advanced automotive applications, including camera networks and vehicle-to-everything (V2X) communication.

RF Performance and Data Transmission Capabilities
The transition toward a comprehensive automotive data ecosystem requires components capable of handling massive information flows without signal degradation. The new connector system operates at up to 9 GHz radio frequency (RF) performance and supports data transmission rates reaching 24 Gbps. These parameters are necessary to accommodate the high-bandwidth requirements of Advanced Driver Assistance Systems (ADAS), high-resolution surround-view and front-facing cameras, antenna modules, and digital cockpit platforms. By utilizing high-frequency coaxial lines, the system maintains signal integrity across complex in-vehicle networks.

Mechanical Design and Assembly Efficiency
As vehicle architectures integrate more sensors and computing modules, physical footprint and assembly robustness become critical engineering constraints. The compact design of these connectors optimizes space within dense vehicle packaging. To ensure manufacturing reliability within the digital supply chain, the system incorporates controlled insertion force mechanisms and anti-stubbing features. These mechanical safeguards protect against contact damage during the assembly process. Furthermore, the hardware is designed for compatibility with established Mini FAKRA interfaces and cavities, allowing for direct integration into existing production lines and global manufacturing operations.

Engineering Perspective on Space Constraints
Eylem Kolukisa, product manager at TE Connectivity, noted that vehicle manufacturers face ongoing challenges when integrating data-intensive technologies into increasingly space-constrained vehicle architectures. The connector system was specifically developed to combine high-speed connectivity with robust assembly performance to address these evolving physical and technical requirements.

Additional Context
This section details technical specifications and competitive benchmarking not included in the original news release.

The Mini FAKRA standard—often referred to in the industry as High-Speed FAKRA Mini (HFM)—was developed to save up to 80% of packaging space compared to traditional, first-generation FAKRA connectors. While standard FAKRA connectors typically support frequencies up to 6 GHz, the Mini FAKRA generation extends this capacity significantly to support raw, uncompressed video and sensor data. TE Connectivity's system competes with established Mini FAKRA product lines from manufacturers such as Rosenberger and Amphenol. These systems are generally evaluated against strict automotive standards, such as USCAR-17, which mandate specific performance thresholds for retention force, mating cycles, and electromagnetic interference (EMI) shielding in harsh vehicular environments.

Edited by Aishwarya Mambet, Induportals Editor, with AI assistance.
