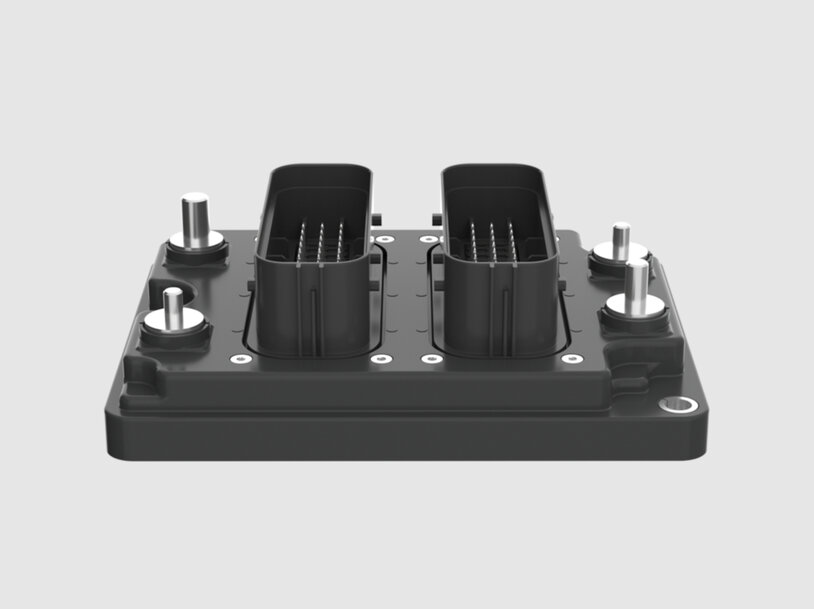

Würth Elektronik ICS Introduces Splitter C2-PE4 for Reliable Ground Connections

Würth Elektronik ICS is deploying the Splitter C2-PE4, a high-capacity grounding module designed to aggregate electrical connections across commercial vehicles and heavy mobile machinery. The hardware component targets common wiring instabilities by centralizing signal distribution and systematically eliminating distributed chassis interfaces across the vehicle frame.

Grounding Architecture Consolidation and Interface Reduction
Electrical systems in commercial transport and mobile machinery frequently experience connectivity failures due to mechanical vibration, environmental corrosion, and complex wiring harness topologies. The Splitter C2-PE4 mitigates these failure points by utilizing a printed circuit board architecture to aggregate ground signals into a singular contact location. This centralized topology minimizes splices within the primary wiring harness and eliminates the reliance on distributed, small-gauge screw connections. The centralized module is highly relevant for the emerging automotive data ecosystem, particularly as electric vehicle manufacturers increasingly utilize non-metallic composite chassis designs to reduce gross vehicle weight, which necessitates dedicated, isolated signal collection platforms.

Electrical Capacity and Ingress Protection Specifications
The grounding module accommodates high-density wiring requirements by supporting up to 70 independent signal lines and four primary power lines within a 155 by 115 by 45-millimeter physical footprint. Operational load capacities include a maximum rating of 15 amperes per individual pin and a total continuous current tolerance of 200 amperes. Beyond standard ground signal aggregation, the hardware is engineered to support positive battery voltage distribution. To maintain structural integrity and electrical continuity in severe operational environments, the unit carries IP66 and IP69K ingress protection ratings, confirming resistance against high-pressure water jets and total dust ingress. Consolidating the electrical infrastructure into this enclosed module lowers installation complexity and increases the baseline safety parameters for heavy machinery operations.

Additional Context:
This section details technical specifications and competitive benchmarking not included in the original product announcement

In the commercial vehicle power distribution sector, centralized grounding modules are directly benchmarked against comparable hard-wired distribution systems and power distribution modules from manufacturers such as TE Connectivity and Eaton. TE Connectivity produces heavy-duty sealed connector architectures that aggregate up to 60 signal lines and maintain IP67 and IP69K ingress ratings for harsh transport environments. Eaton manufactures heavy-duty power distribution blocks designed specifically to manage high-current ground return paths for electric and hybrid vehicle platforms utilizing non-metallic structures. The primary technical benchmark criteria for these components include total continuous current capacity, maximum pin density relative to the physical footprint, and verified environmental resistance against thermal shock and fluid intrusion. These parameters determine the operational viability of power management components within the digital supply chain for heavy machinery manufacturing.
